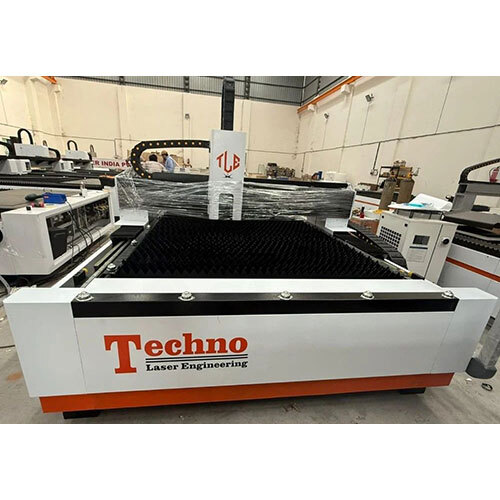

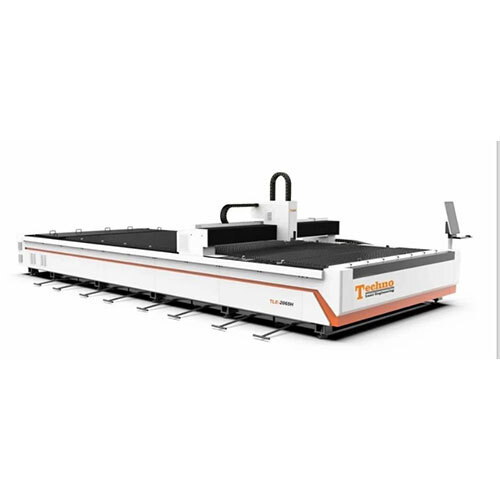

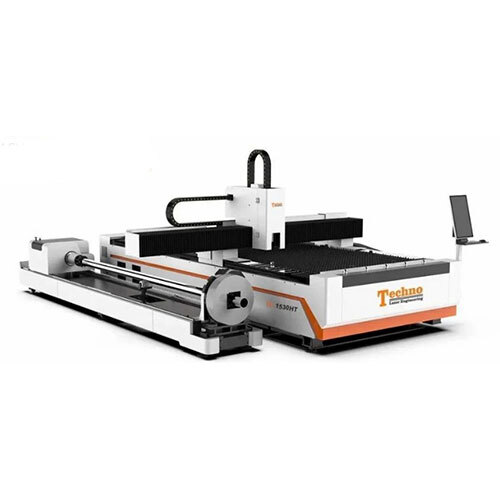

3000W Laser Metal Cutting With Pipe Cutting Machine

3000W Laser Metal Cutting With Pipe Cutting Machine

Get a Price/Quote

Product Details:

Usage & Applications Metal Sheet and Pipe Cutting for Machinery, Construction, Electric Appliances, Aerospace
Technology Fiber Laser Cutting
Working Area 1500 x 3000 mm (Sheet) / Up to 6m (Pipe)
Power 3000W
Phase Three Phase
Product Type Laser Metal Cutting With Pipe Cutting Machine
Laser Type Fiber Laser
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3000W Laser Metal Cutting With Pipe Cutting Machine Price And Quantity

Minimum Order Quantity 1 Unit

3000W Laser Metal Cutting With Pipe Cutting Machine Product Specifications

Technology Fiber Laser Cutting
Working Area 1500 x 3000 mm (Sheet) / Up to 6m (Pipe)
Cooling Mode Water Cooling
Power 3000W
Cutting Area 1500 x 3000 mm (customizable)
Color Customizable (Standard White & Blue)
Product Type Laser Metal Cutting With Pipe Cutting Machine
CNC Or Not Yes
Phase Three Phase
Control System CNC System
Laser Type Fiber Laser
Dimension (L*W*H) 4800 x 2600 x 1700 mm
Capacity 3000W output power
Control Software CypCut
Material Mild Steel, Stainless Steel, Carbon Steel, Aluminum, Copper
Feature Pipe and Sheet Cutting, High Precision, Stable Performance
Usage & Applications Metal Sheet and Pipe Cutting for Machinery, Construction, Electric Appliances, Aerospace
Computerized Yes
Weight (kg) 4200 kg
Cutting Speed 0-30 m/min (depending on material and thickness)
Automatic Grade Automatic
Cutting Thickness 0.5-20 mm (depends on material)
Voltage 380V 50/60Hz (customizable)
Graphic Format Supported AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Pipe Cutting Length Up to 6 meters
Pipe Cutting Diameter Range 20-220 mm
Protection System Fully Enclosed Protective Cover (Optional)
Table Structure Welded heavy-duty machine bed
Maximum Running Speed 90 m/min
Interface Language Multiple Languages Available
Positioning Accuracy 0.03 mm/m
Transmission Gear & Rack
Assist Gas Oxygen, Nitrogen, Air
Laser Source Brand Raycus/IPG/MAX/RECI (Optional)
Drive System Dual Servo Motor
Repeated Positioning Accuracy 0.02 mm
Lubrication System Automatic
Focus System Automatic Focusing
Operating Temperature 5-35C
Electrical Components Schneider/Omron (as per configuration)

3000W Laser Metal Cutting With Pipe Cutting Machine Trade Information

Delivery Time 5-7 Days

Product Description

Select the ace of industrial laser technology: the 3000W Laser Metal Cutting Machine with integrated Pipe Cutting capabilities. Backed by champion brands like Raycus, IPG, MAX, and RECI for source options, this automatic, computerized cutting solution delivers first-string performance for every project. Access a best-price solution that achieves a maximum speed of 90m/min and ensures precision down to 0.02mm. With a robust welded bed, dual servo motors, and fully enclosed safety options, this machine is engineered for stable, high-precision results in machinery, construction, and more.

Versatile Industrial Applications for Precision and Power

Engineered to excel in plant operations, the 3000W Laser Metal Cutting With Pipe Cutting Machine is designed for heavy-duty usage across manufacturing, construction, electrical appliances, and aerospace sectors. Its robust fabrication handles materials like mild steel, stainless steel, aluminum, carbon steel, and copper with ease. Whether you need to cut sheets or pipes, its advanced fiber laser technology ensures high precision and consistent quality, making it ideal for a variety of demanding industrial and commercial applications.

Global Markets, Reliable Exchange, and Seamless Delivery

Reach global markets with ease as this first-string cutting machine is exchanged and handed over to clients worldwide. Export-ready, the manufacturer supports reliable supply ability, ensuring prompt delivery to meet production timelines. Sample policies cater to diverse demands, and each unit is securely dispatched after thorough quality checks. This robust supply and timely shipment process guarantees premium customer satisfaction and positions your operation ahead in the international marketplace.

FAQ's of 3000W Laser Metal Cutting With Pipe Cutting Machine:

Q: How does the dual servo motor drive system benefit the cutting process?

A: The dual servo motor drive system ensures superior motion stability and high-speed operation, resulting in precise cuts and consistent quality across both sheet and pipe materials.

Q: What types of materials can be processed with this laser cutting machine?

A: This machine is suitable for cutting a wide range of materials such as mild steel, stainless steel, aluminum, carbon steel, and copper, accommodating diverse industrial needs.

Q: Where can this machine be applied in an industrial context?

A: It is extensively used in industries like machinery manufacturing, construction, electrical appliances, and aerospace, thanks to its high precision and versatility for both sheet and pipe cutting.

Q: What is the typical process for obtaining a demonstration or sample cut?

A: Interested clients can request a sample cut or demonstration, which will be arranged and dispatched following confirmation as per the manufacturer's sample policy, ensuring you see machine performance firsthand.

Q: When will the machine be handed over after purchase and payment?

A: Once payment is processed, machines are securely packaged and promptly dispatched, with delivery timeframes varying based on availability and shipping destination.

Q: How does the automatic focusing system improve usability?

A: The automatic focusing system optimizes laser focus in real-time, enhancing cut quality, reducing setup times, and facilitating seamless operation even across varying material thicknesses.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fiber Laser Cutting Machine' category

Fiber Laser Cutting Machine Minimum Order Quantity : 1 Phase : Three Phase Control System : Other, CNC CNC Or Not : Other, Yes Dimension (L*W*H) : 4700 x 2200 x 1700 mm Laser Type : Fiber Laser Cooling Mode : Water Cooling Technology : Fiber Laser Cutting Working Area : 1500 x 3000 mm Color : Other, Standard (White/Blue) Product Type : Laser Cutting Machine Power : 1000W, 2000W, 3000W, 4000W, 6000W (optional) Cutting Area : 1500 x 3000 mm Automatic Grade : Automatic Computerized : Yes Weight (kg) : 3500 kg approx. Cutting Speed : 060 m/min (varies by material and configuration) Voltage : 380V (3 Phase) 50/60Hz Graphic Format Supported : Other, AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cutting Thickness : Up to 20 mm (depends on material and power) Control Software : CypCut or Equivalent Capacity : 1000W6000W (depends on model) Usage & Applications : Industrial Sheet Metal Cutting, Automotive parts, Electrical Cabinets, Chassis, Equipment Manufacturing Material : Other, Stainless Steel, Carbon Steel, Aluminum, Brass, Copper Feature : Other, High Precision, Stable Performance, Energy Efficient

Send Inquiry

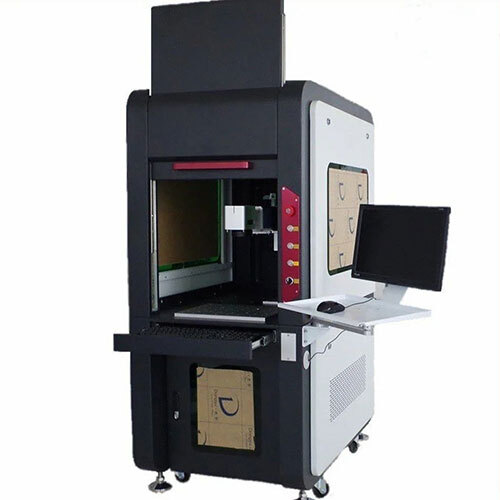

1500W Laser Gold Cutting Machine Minimum Order Quantity : 1 Phase : Single Phase / Three Phase Control System : Other, CNC Control CNC Or Not : Other, Yes Dimension (L*W*H) : 1400 mm x 800 mm x 1500 mm Laser Type : Fiber Laser Cooling Mode : Water Cooling Technology : Advanced Fiber Laser Technology Working Area : 300 mm x 300 mm Color : Other, White & Grey Product Type : Gold Cutting Machine Power : 1500W Cutting Area : 300 mm x 300 mm Automatic Grade : Automatic Computerized : Yes Weight (kg) : Approximately 500 kg Cutting Speed : 0 30 m/min Voltage : 220 V / 380 V Graphic Format Supported : Other, AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Cutting Thickness : 0.1 mm to 5 mm (depends on material) Control Software : CypCut / Ruida / Customized Capacity : Continuous Operation Usage & Applications : Jewelry Cutting, Electronic Components, Fine Metal Processing Material : Other, Gold, Silver, Brass, Copper, Other Precious Metals Feature : Other, High Precision, Smooth Edge, Minimum Heat Affected Zone
