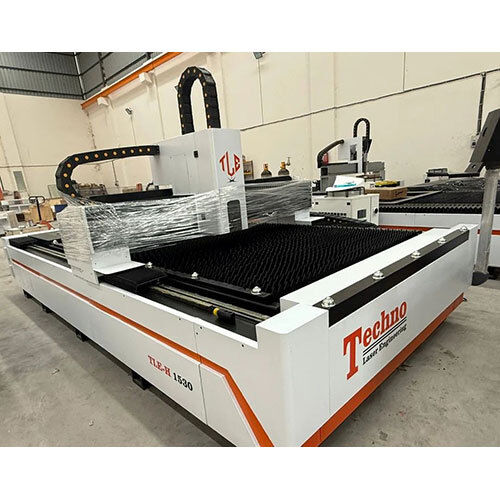

Fiber Laser Cutting Machine

Name: Fiber Laser Cutting Machine
Brand: Techno Laser Engineering
Price: 2500000 INR
Availability: InStock

2500000 INR/Unit

Get a Price/Quote

Product Details:

Phase Three Phase
Power 1000W, 2000W, 3000W, 4000W, 6000W (optional)
Working Area 1500 x 3000 mm
Technology Fiber Laser Cutting
Usage & Applications Industrial Sheet Metal Cutting, Automotive parts, Electrical Cabinets, Chassis, Equipment Manufacturing
Product Type Laser Cutting Machine
Laser Type Fiber Laser
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Fiber Laser Cutting Machine Price And Quantity

Price 2500000 INR/Unit
Minimum Order Quantity 1 Unit

Fiber Laser Cutting Machine Product Specifications

Computerized Yes
Product Type Laser Cutting Machine
Material Stainless Steel, Carbon Steel, Aluminum, Brass, Copper
Control System CNC
Feature High Precision, Stable Performance, Energy Efficient
Cutting Thickness Up to 20 mm (depends on material and power)
Cutting Speed 0-60 m/min (varies by material and configuration)
Automatic Grade Automatic
Usage & Applications Industrial Sheet Metal Cutting, Automotive parts, Electrical Cabinets, Chassis, Equipment Manufacturing
Control Software CypCut or Equivalent
Weight (kg) 3500 kg approx.
Technology Fiber Laser Cutting
Graphic Format Supported AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Capacity 1000W-6000W (depends on model)
Power 1000W, 2000W, 3000W, 4000W, 6000W (optional)
Cutting Area 1500 x 3000 mm
Color Standard (White/Blue)
Cooling Mode Water Cooling
Phase Three Phase
Dimension (L*W*H) 4700 x 2200 x 1700 mm
Voltage 380V (3 Phase) 50/60Hz
CNC Or Not Yes
Laser Type Fiber Laser
Working Area 1500 x 3000 mm

Focus Type Auto-Focus Cutting Head
Safety Features Fully Enclosed Protective Cover, Smoke Exhaust System
Lubrication System Automatic
Operating Temperature 0C - 40C
Laser Source Brand Raycus/IPG/MAX (Options)
Max Acceleration 1.2G
Software Update Lifetime Free Updates
Display Touch Screen Control Panel
Assist Gas Oxygen / Nitrogen / Air
Table Structure Heavy Duty Welded Bed
Positioning Accuracy 0.03 mm/m
Transmission System Gantry Double Drive / Rack & Pinion
Repeat Positioning Accuracy 0.02 mm
Cooling Unit Power 2KW
Drive System Double Servo Motor

Fiber Laser Cutting Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Unit Per Month
Delivery Time 30 Days
Main Domestic Market All India

Product Description

Jump on the future of industrial cutting with this popular Fiber Laser Cutting Machine, now in the spotlight for its kingly performance and heroic precision! Delivering towering results, it features a positioning accuracy of 0.03 mm/m and repeat positioning accuracy of 0.02 mm. Powered by Raycus/IPG/MAX laser sources and a robust double servo drive, this machine is built on a heavy-duty welded bed for stability. Towering above competitors, it supports cutting areas up to 1500 x 3000 mm and thicknesses of 20 mm, making it kingly for any industrial, automotive, or sheet metal application. Let your production line enjoy the benefit of automatic lubrication, lifetime software updates, and a fully enclosed protective cover for supreme safety and efficiency.

Application & Direction of Use

The Fiber Laser Cutting Machine is designed for swift and accurate industrial sheet metal processing. Its versatility allows seamless handling of stainless steel, carbon steel, aluminum, brass, and copper. Primarily utilized in automotive component fabrication, chassis production, electrical cabinet manufacturing, and large-scale equipment assembly, it excels in commercial environments. Operators simply upload compatible graphic files, set material parameters, and initiate automated, computer-controlled cutting-delivering precise outcomes in minimal time. This machine streamlines commercial workflows, increasing productivity and product quality.

Certifications, Orders & Supply Details

This Fiber Laser Cutting Machine arrives with necessary manufacturer certifications to ensure quality and operational safety. We estimate order processing within a prompt timeframe, with shipped goods safely packaged for secure transit. Various payment terms are available for client convenience and flexibility. Our supply ability ensures consistent delivery of machines according to demand, minimizing lead times for bulk and individual orders. Clients can rely on transparent communication, timely updates, and comprehensive support throughout the procurement and fulfillment process.

FAQ's of Fiber Laser Cutting Machine:

Q: How does the Fiber Laser Cutting Machine ensure high precision during operation?

A: The machine combines a positioning accuracy of 0.03 mm/m and repeat positioning accuracy of 0.02 mm, powered by double servo motors and a heavy-duty welded bed. These features ensure stable, precise cuts on diverse material types.

Q: What types of materials can this Fiber Laser Cutting Machine process?

A: It can effortlessly cut stainless steel, carbon steel, aluminum, brass, and copper, making it suitable for wide-ranging industrial applications in manufacturing.

Q: When is regular maintenance required for optimal machine performance?

A: Although equipped with an automatic lubrication system, periodic checks of the cooling unit, exhaust system, and safety features are recommended to uphold peak efficiency and safety standards.

Q: Where is this Fiber Laser Cutting Machine most commonly used?

A: It finds widespread use in industrial sheet metal workshops, automotive part manufacturing, electrical cabinet production, and equipment assembly plants due to its versatility and speed.

Q: What is the typical process for placing and receiving an order?

A: After selecting your model and confirming specifications, orders are processed efficiently. Once payment terms are set, shipping is arranged and goods are dispatched with tracking until final delivery.

Q: How does the fully enclosed protective cover contribute to operational safety?

A: The fully enclosed protective cover prevents direct exposure to laser radiation and airborne particles, providing robust safety for operators during machine operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fiber Laser Cutting Machine' category

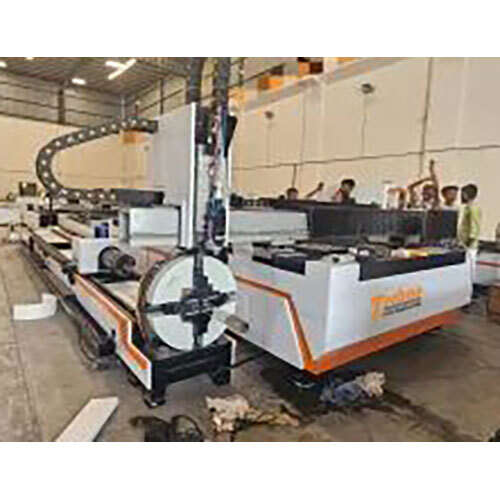

3000W Laser Metal Cutting With Pipe Cutting Machine Minimum Order Quantity : 1 Laser Type : Fiber Laser Working Area : 1500 x 3000 mm (Sheet) / Up to 6m (Pipe) Capacity : 3000W output power Power : 3000W Color : Other, Customizable (Standard White & Blue) Cutting Area : 1500 x 3000 mm (customizable) Cooling Mode : Water Cooling Phase : Three Phase Dimension (L*W*H) : 4800 x 2600 x 1700 mm Voltage : 380V 50/60Hz (customizable) CNC Or Not : Other, Yes Automatic Grade : Automatic Usage & Applications : Metal Sheet and Pipe Cutting for Machinery, Construction, Electric Appliances, Aerospace Control Software : CypCut Weight (kg) : 4200 kg Technology : Fiber Laser Cutting Graphic Format Supported : Other, AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Computerized : Yes Product Type : Laser Metal Cutting With Pipe Cutting Machine Material : Other, Mild Steel, Stainless Steel, Carbon Steel, Aluminum, Copper Control System : Other, CNC System Feature : Other, Pipe and Sheet Cutting, High Precision, Stable Performance Cutting Thickness : 0.520 mm (depends on material) Cutting Speed : 030 m/min (depending on material and thickness)

Send Inquiry

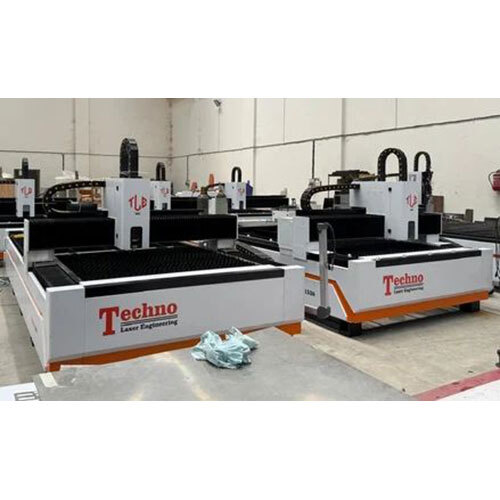

Laser Cutting Machine For Metal Minimum Order Quantity : 1 Laser Type : Fiber Laser Working Area : 1500 mm x 3000 mm Capacity : 1000W 6000W (customizable) Power : 1000W / 1500W / 2000W / 3000W / 4000W / 6000W Color : Other, White/Blue Cutting Area : 3000 mm x 1500 mm Cooling Mode : Water Cooling Phase : Three Phase Dimension (L*W*H) : 4400 x 2230 x 1750 mm Voltage : 380V (10%) / 5060Hz, 3 Phase CNC Or Not : Other, Yes Automatic Grade : Automatic Usage & Applications : Metal Sheet Processing, Industrial Manufacturing, Automotive, Hardware, Construction Control Software : CypCut / NC Studio Weight (kg) : 3200 kg (approx.) Technology : Fiber Laser Technology Graphic Format Supported : Other, AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Computerized : Yes Product Type : Laser Cutting Machine For Metal Material : Other, Metal (Stainless Steel, Carbon Steel, Aluminum, Brass, Copper) Control System : Other, CNC Control Feature : Other, High Precision, High Efficiency, Stable Performance Cutting Thickness : 0.5 20 mm (depending on material) Cutting Speed : up to 50 m/min
